- 120-mm ,140-mm ,160-mm Width
- Up to 36-mm triple glazing installation
- Semi-concealed gasket and self-sealing laths that do not protrude onto the glass surface and offer an aesthetic appearance
- Specially designed gasket that does not pass heat, sound, water and dust
Color Alternatives
Color Options
Technical Details
FRAME WITH WINDOW SILL OPTIONS IN
120 mm / 140 mm / 160 mm
WIND AND RAIN BLOCKAGE WITH SASH SYSTEM
UP TO 36-mm GLASS INSTALLATION
FRENCH FRAME PROFILES COMPATIBLE WITH THE KLASLINE SERIES.
2.7-mm (±0.2mm) WALL THICKNESS
3° SLOPE TO WINDOW SILL
STRONG THERMAL AND SOUND INSULATION WITH INNOVATIVE FRAME DESIGN
Profiles
120-mm FRENCH FRAME PROFILE
EN 13
140-mm FRENCH FRAME PROFILE
EN 14
160-mm FRENCH FRAME PROFILE
EN 15

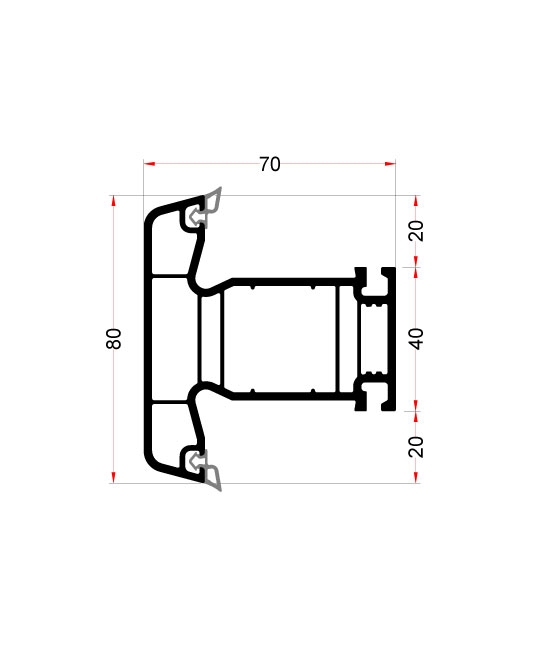

MULLION PROFILE
EN 17
WINDOW SASH PROFILE
EN 18

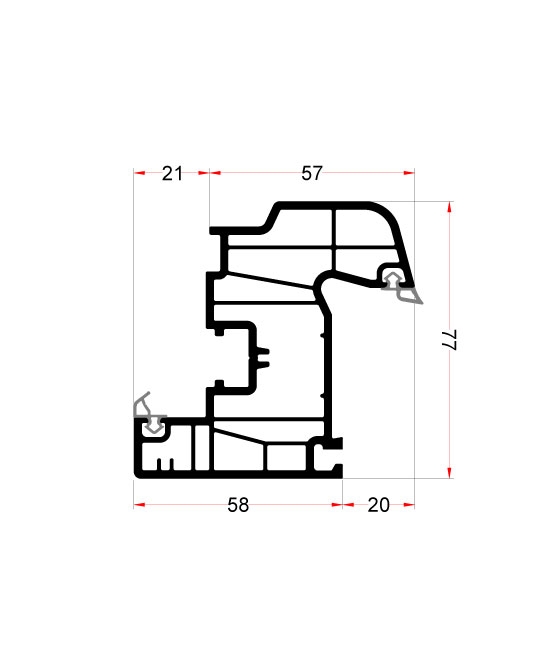

WINDOW SASH WITH DRIP PROFILE
EN 19

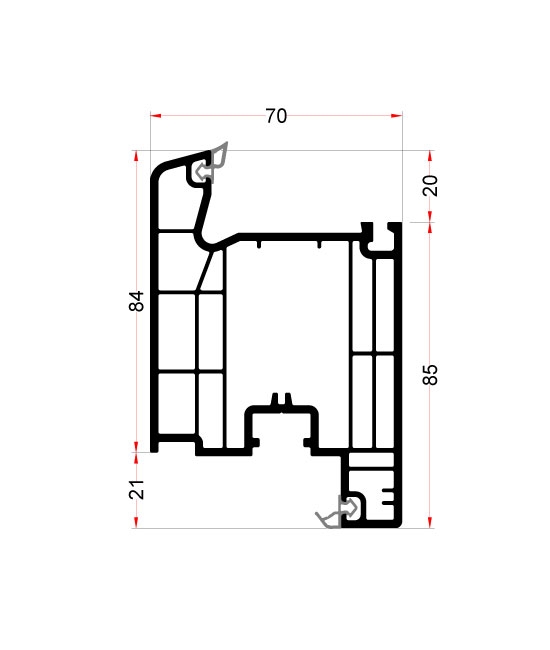

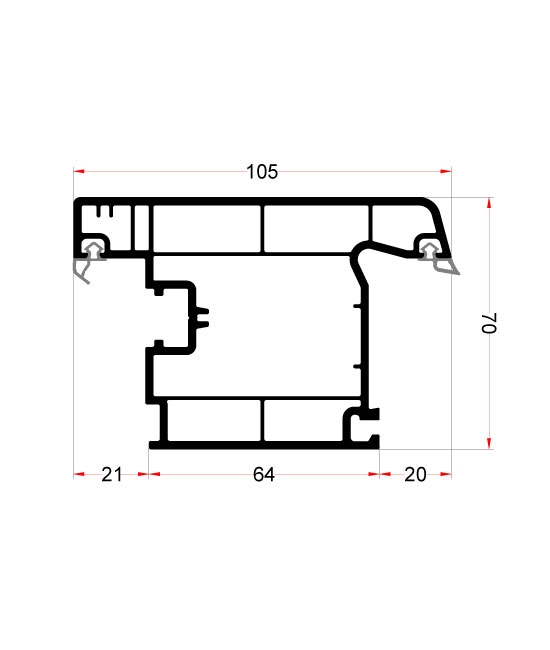

OUTWARD OPENING DOOR SASH PROFILE
EN 22

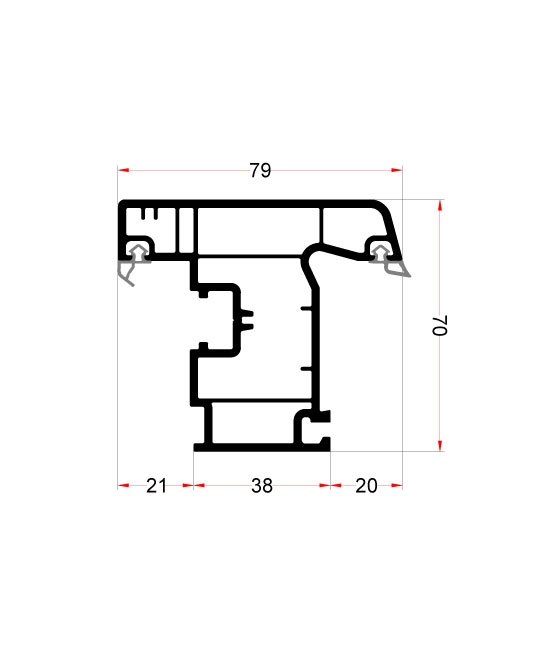

OUTWARD OPENING WINDOW SASH PROFILE
EN 23
160-mm FRENCH FRAME PROFILE
EN 21
MOVABLE MULLION PROFILE
EN 24
Glazing Beads
32-mm TRIPLE GLAZING BEAD
EN 48

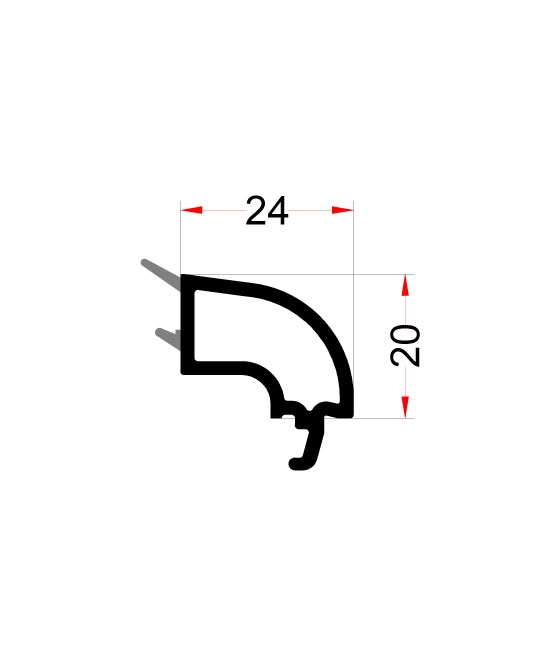

24-mm OVAL DOUBLE GLAZING BEAD
EN 107

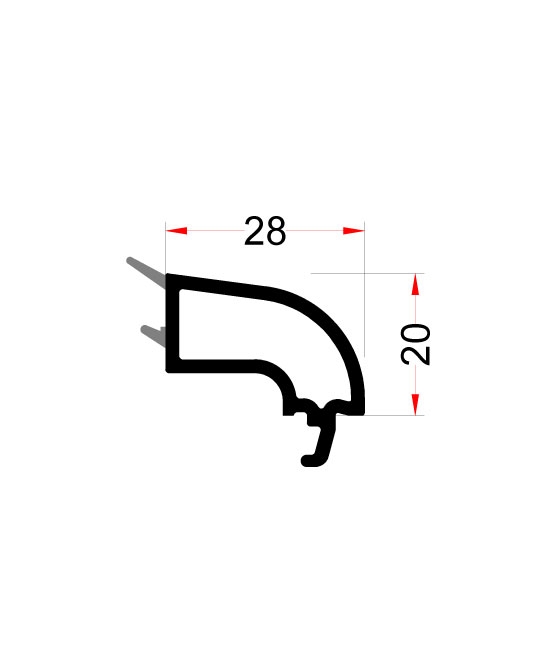

20-mm OVAL DOUBLE GLAZING BEAD
EN 106

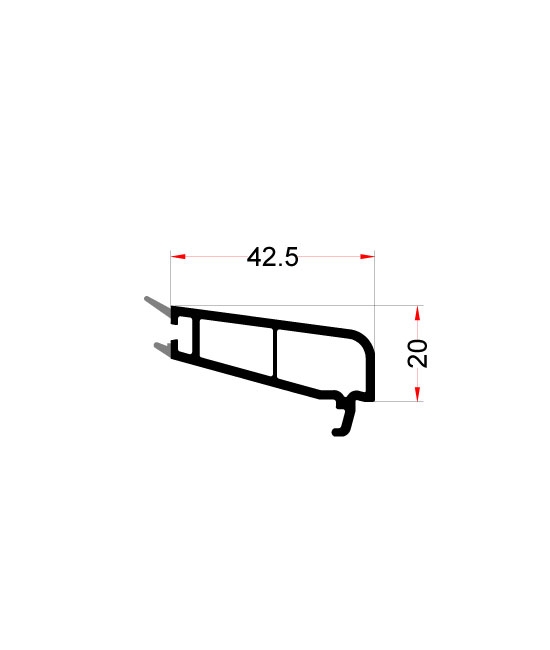

4-mm SINGLE GLAZING BEAD
EN 46
20-mm DOUBLE GLAZING BEAD
EN 45
24-mm DOUBLE GLAZING BEAD
EN 49
32-mm TRIPLE GLAZING BEAD
EN 116
