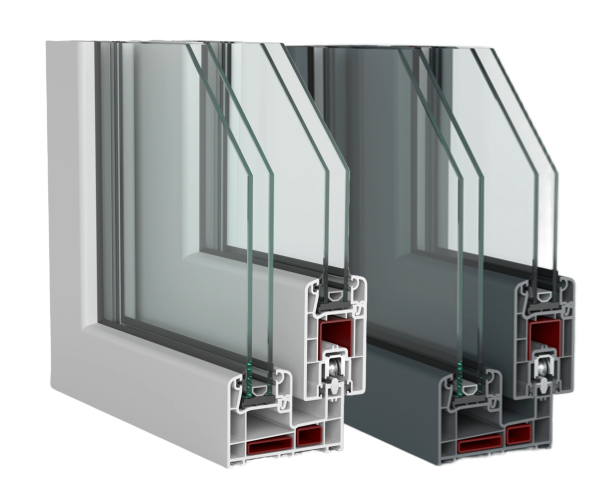

- Up to 24-mm double glazing installation
- 2.2 mm (+/- 0.2 mm) wall thickness
- 2.5-mm (+/- 0.2-mm) sliding sash wall thickness
- Special designed gasket does not pass heat, sound , water and dust
- Triple-rail and fly screen frame options
- 2° slope for water drainage
Product Info
Doors and wındows to the future
Color Alternatives
Color Options
Technical Details
2.2 mm (+/- 0.2 mm) WALL THICKNESS
2.5 mm (+/- 0.2 mm) SLIDING SASH WALL THICKNESS
UP TO 24-mm GLASS INSTALLATION
2° SLOPE FOR WATER DRAINAGE
TRIPLE-RAIL AND FLY SCREEN FRAME OPTIONS
Profiles
FRAME PROFILE
EN 91
SINGLE RAILED FRAME PROFILE
EN 93
SINGLE RAILED SLIDING FRAME PROFILE WITH CASING
EN 101
SLIDING FRAME WITH CASING AND FLY SCREEN
EN 94
SLIDING FRAME PROFILE WITH CASING
EN 92
VERTICAL SLIDING MULLION
EN 97
SLIDING SASH PROFILE
EN 95 (without brush seal)
EN 103 (with brush seal)
TRIPLE RAILED SLIDING FRAME PROFILE
EN 104
SLIDING FRAME WITH CASING AND FLY SCREEN (6 cm)
EN 941
SLIDING MULLION PROFILE
EN 96
Application Drawings
SINGLE RAILED SLIDING FRAME – SLIDING SASH INSTALLATION
SINGLE RAILED SLIDING FRAME WITH CASING – SLIDING SASH INSTALLATION
DOUBLE RAILED SLIDING FRAME -SLIDING SASH INSTALLATION
TRIPLE RAILED SLIDING FRAME – SLIDING SASH INSTALLATION
SINGLE RAILED SLIDING FRAME – THRESHOLD INSTALLATION
SLIDING LOCK ADAPTER INSTALLATION
SLIDING LOCK ADAPTER INSTALLATION
SLIDING ALUMINIUM CONNECTOR INSTALLATION
Glazing Beads
4-mm SINGLE GLAZING BEAD
EN 47
20-mm DOUBLE GLAZING BEAD
EN 48
24-mm DOUBLE GLAZING BEAD
EN 109
Auxiliary Profiles
SLIDING LOCK ADAPTER PROFILE
EN 99
SLIDING FIX PROFILE
EN 98
THRESHOLD PROFILE FOR SINGLE RAILED SLIDING FRAME
EN 69
SLIDING FLY SCREEN MULLION PROFILE
EN 226
SLIDING FLY SCREEN SASH PROFILE
EN 341
