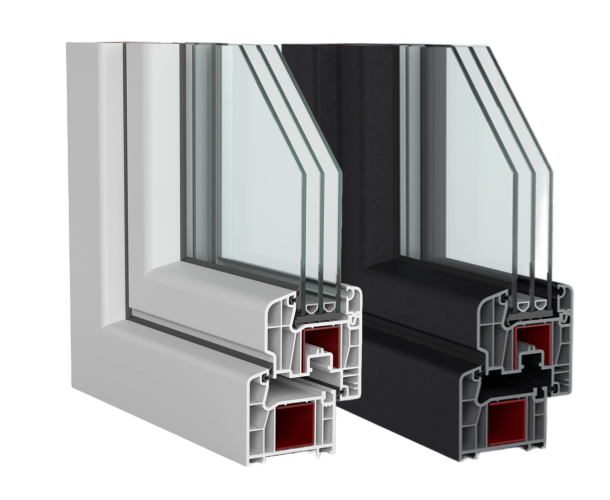

- 70-mm Width
- Up to 36-mm triple glass installation
- 3-mm (± 0.2-mm) in wall thickness European standards
- MASTERLINE's unique self-sealing glazing beads that are easy to install and remove
- Specially designed gasket that does not pass heat, sound, water and dust
- 2° inclined water drainage channels
- Heat and sound insulation with 5-chamber system
Product Info
Doors and wındows to the future
Color Options
Color Alternatives
Technical Details
70-mm FRAME WIDTH
WIND AND RAIN BLOCKAGE WITH SASH SYSTEM
UP TO 36-mm TRIPLE GLASS INSTALLATION
3-mm (+/- 0.2 mm) WALL THICKNESS
2° SLOPE FOR WATER DRAINAGE
STRONG THERMAL AND SOUND INSULATION WITH 5-CHAMBER SYSTEM
Profiles
FRAME PROFILE
EN 163
FRAME PROFILE WITH CASING
EN 203
MULLION PROFILE
EN 173
WINDOW SASH PROFILE
EN 183
DOOR SASH PROFILE
EN 213
Application Drawings
FRAME WITH CASING – WINDOW SASH INSTALLATION
MULLION – WINDOW SASH INSTALLATION
MULLION – DOOR SASH INSTALLATION
FRAME – WINDOW SASH INSTALLATION
MOVABLE MULLION – WINDOW SASH INSTALLATION
FRAME – DOOR SASH INSTALLATION
FRAME – OUTWARD OPENING WINDOW SASH INSTALLATION
FRAME – OUTWARD OPENING DOOR SASH INSTALLATION
Glazing Bead Applications
20 mm DOUBLE GLAZING PROFILE
24 mm DOUBLE GLAZING PROFILE
32 mm GLAZING PROFILE
Glazing Beads
32-mm TRIPLE GLAZING BEAD
EN 48
24-mm OVAL DOUBLE GLAZING BEAD
EN 107
20-mm OVAL DOUBLE GLAZING BEAD
EN 106
4-mm SINGLE GLAZING BEAD
EN 46
20-mm DOUBLE GLAZING BEAD
EN 45
24-mm DOUBLE GLAZING BEAD
EN 49
36-mm TRIPLE GLAZING BEAD
EN 116
Auxiliary Profiles
70×70 BOX PROFILE
EN 55
Ø50 PIPE PROFILE
EN 58
KLASLINE CORNER ADAPTER
EN 54
UNIVERSAL COUPLING PROFILE
EN 61
30 x 46 EXTENDER PROFILE
EN 113
30×70 FRAME EXTENSION PROFILE
EN 111
