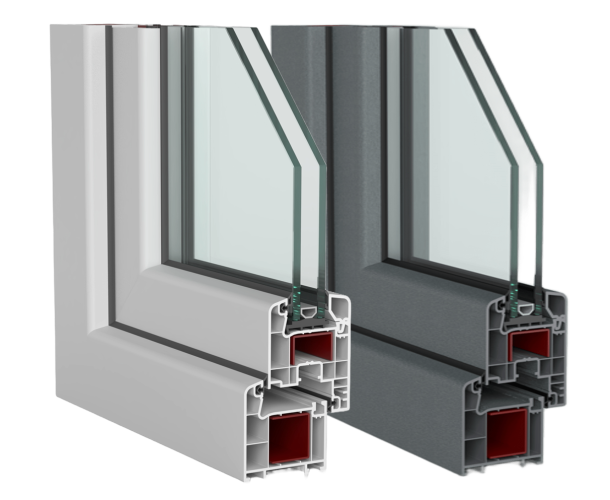

- 60-mm Width
- 1.8-mm (+/- 0.2-mm) wall thickness
- 24-mm glass application possibility
- 2° inclined water drainage channels
- Special designed gasket that does not pass heat, sound, water and dust
- Heat and sound insulation with 3-chamber system
Product Info
Doors and wındows to the future
Color Alternatives
Color Options
Technical Details
60-mm FRAME WIDTH
1.8-mm (+/- 0.2 mm) WALL THICKNESS
UP TO 24-mm DOUBLE GLAZING INSTALLATION
2° SLOPE FOR WATER DRAINAGE
STRONG THERMAL AND SOUND INSULATION WITH 3-CHAMBER SYSTEM
WIND AND RAIN BLOCKAGE WITH SASH SYSTEM
Profiles
FRAME PROFILE
EN 812
FRAME PROFILE WITH CASING
EN 872
MULLION PROFILE
EN 822
WINDOW SASH PROFILE
EN 832
DOOR SASH PROFILE
EN 842
Application Drawings
FRAME – WINDOW SASH INSTALLATION
MULLION – WINDOW SASH INSTALLATION
MULLION – DOOR SASH INSTALLATION
FRAME WITH CASING – DOOR SASH INSTALLATION
MULLION – WINDOW SASH INSTALLATION
BOX PROFILE INSTALLATION
CORNER ADAPTER INSTALLATION
UNIVERSAL COUPLING PROFILE INSTALLATION
Glazing Bead Applications
4 MM SINGLE GLAZING BEAD
20 MM DOUBLE GLAZING BEAD
24 MM DOUBLE GLAZING BEAD
Glazing Beads
4-mm SINGLE GLAZING BEAD
EN 85
20-mm DOUBLE GLAZING BEAD
EN 86
24-mm DOUBLE GLAZING BEAD
EN 89
Auxiliary Profiles
60×60 BOX PROFILE
EN 53
Ø50 PIPE PROFILE
EN 58
CORNER ADAPTER
EN 57
UNIVERSAL COUPLING PROFILE
EN 61
