- 70-mm Width
- Up to 36-mm triple glazing installation
- Specially designed gasket that does not pass heat, sound, water and dust
- 2° inclined water drainage channels
- European standard 2.3 mm (± 0.2) wall thickness
- Heat and sound insulation with 5-chamber system
Product Info
Doors and wındows to the future
Color Options
Color Alternatives
Technical Details

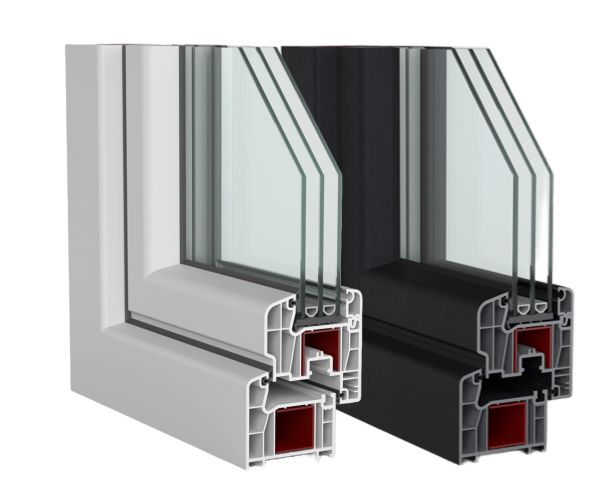

70-mm FRAME WIDTH
WIND AND RAIN BLOCKAGE WITH DRIP SASH SYSTEM
UP TO 36-mm TRIPLE GLAZING INSTALLATION
2.3-mm (+/- 0.2 mm) WALL THICKNESS
2° SLOPE FOR WATER DRAINAGE
Uf = 1.4 W/m2K
Uw = 1.5 W/m2K
STRONG THERMAL AND SOUND INSULATION WITH 5-CHAMBER SYSTEM
Profiles
FRAME PROFILE
EN 16
FRAME PROFILE WITH CASING
EN 20
MULLION PROFILE
EN 17
WINDOW SASH PROFILE
EN 18
WINDOW SASH WITH DRIP PROFILE
EN 19
DOOR SASH PROFILE
EN 21
OUTWARD OPENING DOOR SASH PROFILE
EN 22
OUTWARD OPENING WINDOW SASH PROFILE
EN 23
MOVABLE MULLION PROFILE
EN 24
Application Drawings
FRAME WITH CASING – WINDOW SASH INSTALLATION
MULLION – WINDOW SASH INSTALLATION
MULLION – DOOR SASH INSTALLATION
FRAME – WINDOW SASH INSTALLATION
MOVABLE MULLION – WINDOW SASH INSTALLATION
FRAME – DOOR SASH INSTALLATION
FRAME – OUTWARD OPENING WINDOW SASH INSTALLATION
FRAME – OUTWARD OPENING DOOR SASH INSTALLATION
Glazing Bead Applications
20 mm DOUBLE GLAZING BEAD
24 mm DOUBLE GLAZING BEAD
32 mm TRIPLE GLAZING BEAD
Glazing Beads
32-mm TRIPLE GLAZING BEAD
EN 48
24-mm OVAL DOUBLE GLAZING BEAD
EN 107
20-mm OVAL DOUBLE GLAZING BEAD
EN 106
4-mm SINGLE GLAZING BEAD
EN 46
20-mm DOUBLE GLAZING BEAD
EN 45
24-mm DOUBLE GLAZING BEAD
EN 49
36-mm TRIPLE GLAZING BEAD
EN 116
Auxiliary Profiles
70×70 BOX PROFILE
EN 55
Ø50 PIPE PROFILE
EN 58
KLASLINE CORNER ADAPTER
EN 54
UNIVERSAL COUPLING PROFILE
EN 61
30 X 46 EXTENDER PROFILE
EN 113
30×70 FRAME EXTENSION PROFILE
EN 111
